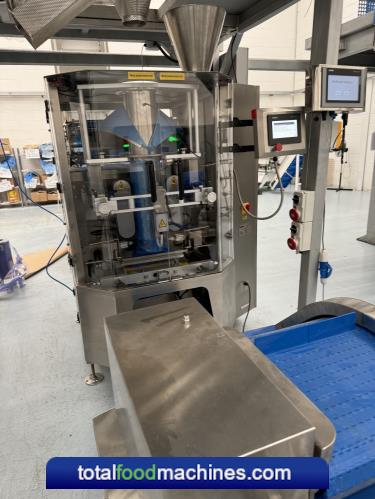

VFFS 520 Bagger
Vertical Form Fill Seal Machine
V520 High Speed Vertical Film Seal Packaging Machine
Vertical film seal packaging machine features:
1. Siemens PLC control system with human-machine interface and easy operating visual touch screen.
2. Servo film running system, pneumatic horizontal sealing control, precise positioning, excellent machine performance and nice packaging.
3. Perfect automatic alarm and protection function to minimize the loss.
4. Full packaging process of measuring, feeding, filling, bag forming and date printing in one automatic operation by the machine equipped with measurement device.
5. Bag type: pillow bag, gusset bag and hole-punching bag.
6. Maximize the reliability and intelligence of the whole machine.
All machines supplied with European Components
Automatic bagger application:
It is suitable for dosing and packaging fluidic or low fulidity materials, like milk powder, albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, corn powder, icing powder etc.
Vertical film seal packaging machine specifications:
Packing Speed 120BPM
Bag Size 50-350(L)*50-50-250(W)mm
Bag Type pillow bag, gusset bag, hole punching bag
Film Width 120-520mm
Film Thickness 0.04-0.09mm
Film Material BOPP/CPP,BOPP/PE,BOPP/MCPP,PET/VMPET/PE,PET/PE
Air Consumption 0.8Mps 0.4m³/min
Power Supply single phase 220V 50HZ/60HZ, 3.4/4.2KW
Machine Dimension 1,560(L)*1160(W)*1,530(H)mm
Machine Weight 480kg
For further information contact Total Food Machines on 02890 994 202 or email sales@totalfoodmachines.com
