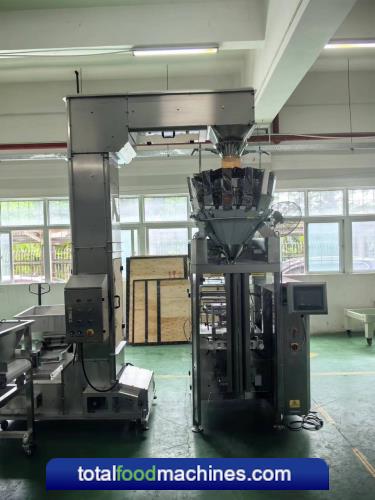

Multihead Weigher and VFFS
All-in-One Weighing and Bagging System Compact, Space-Saving Solution for Efficient Production
Our Multihead Weigher and VFFS (Vertical Form, Fill, Seal) Bagger is a highly efficient, all-in-one system designed to meet the needs of modern factories with limited space. This compact machine combines precision weighing with automated packaging, making it the perfect solution for high-performance production lines.
Multihead Weigher Features:
- Durable Stainless Steel Construction (316): Ensures long-lasting performance, hygiene, and resistance to corrosion.
- European Components: Guaranteed superior quality and enhanced reliability for optimal performance.
- HBM Load Cells: Deliver exceptional accuracy for consistent weighing results.
- Siemens PLC & HMI: Provide seamless, user-friendly operation and control.
- IP65 Waterproof Rating: Designed for superior protection in harsh industrial environments.
VFFS Bagger Features:
- 316 Stainless Steel Construction: Built to last, maintaining high hygiene standards and longevity.
- Advanced Automation: Control systems by Mitsubishi or Siemens for smooth and reliable operation.
- Premium Components: Includes parts from leading manufacturers such as Airtac, Danfoss, and Schneider to guarantee peak performance.
- Customisable Options: Tailor the system to your unique packaging needs, including models with liquid depositing systems.
Key Benefits & Features:
- Space-Saving Design: Ideal for workshops with height limitations, under 3,000mm.
- Cost-Effective: Maximises productivity while reducing operational costs.
- Golden Ratio Design: Enhances machine stability and accuracy for consistent, reliable results.
- Integrated System: Weighing and packaging functions are seamlessly controlled by a single HMI, simplifying operation.
- Versatility: Suitable for a wide variety of products, with customizable solutions to meet specific customer requirements.
Main Configuration:
- Body Frame: SUS304 Stainless Steel
- Max Film Width: 420mm
- Max Speed: 100 bpm (empty bags)
- Packaging Material: Standard heat-sealable composite film
- Electrical Configuration:
- Mitsubishi PLC
- Panasonic servo system (2 sets)
- Airtac pneumatic components
- Banner photoelectric sensors
- User Interface: 10” touch screen for easy operation.
Specifications:
| Model |
TY-1A-YZ-M1008-101 |
TY-1A-YZ-M1016-101 |
TY-1A-YZ-M1408-101 |
TY-1A-YZ-M1416-101 |
| Max Weighing (per hopper) |
300g |
300g |
300g |
300g |
| Weighing Accuracy |
±0.5g |
±0.5g |
±0.5g |
±0.5g |
| Min. Scale Interval |
0.1g |
0.1g |
0.1g |
0.1g |
| Hopper Quantity |
10 |
14 |
10 |
14 |
| Hopper Volume |
0.8L / 1.6L |
0.8L / 1.6L |
0.8L / 1.6L |
0.8L / 1.6L |
| Max Weighing Speed |
60 bpm |
80 bpm |
60 bpm |
80 bpm |
| Max Film Width |
420mm |
420mm |
420mm |
420mm |
| Packaging Material |
Heat-sealable film |
Heat-sealable film |
Heat-sealable film |
Heat-sealable film |
| Packing Speed |
80 bpm (empty bags) |
100 bpm (empty bags) |
80 bpm (empty bags) |
100 bpm (empty bags) |
| Power Supply |
AC220V ±10% 50HZ/60HZ |
AC220V ±10% 50HZ/60HZ |
AC220V ±10% 50HZ/60HZ |
AC220V ±10% 50HZ/60HZ |
| Machine Dimensions |
1457(L) x 1080(W) x 2313(H)mm (0.8L) |
1700(L) x 1211(W) x 2415(H)mm (1.6L) |
1457(L) x 1080(W) x 2391(H)mm (0.8L) |
1700(L) x 1211(W) x 2515(H)mm (1.6L) |
| Machine Weight |
635kg (0.8L); 685kg (1.6L) |
655kg (0.8L); 735kg (1.6L) |
655kg (0.8L); 735kg (1.6L) |
805kg (0.8L); 855kg (1.6L) |
This high-quality, space-efficient system is engineered to meet the most demanding production environments, delivering reliable, high-speed results. Contact us to discover how our integrated weighing and bagging solutions can optimise your production processes Total Food Machines 02890 994 202
