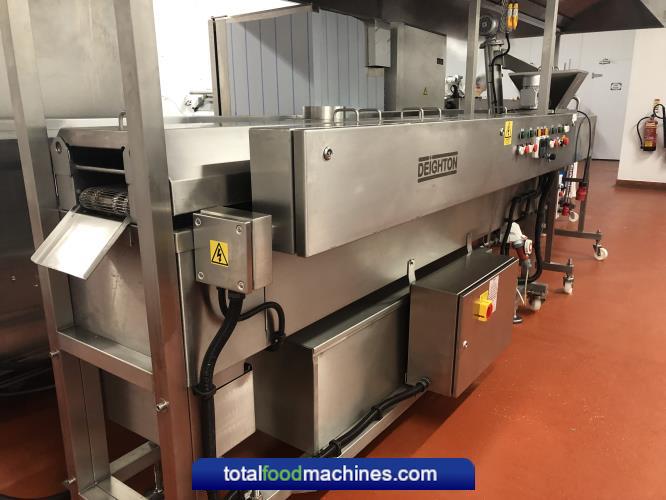

Deighton EconoFry Electric Fryers
High-Performance Frying Solutions for Every Need
The Deighton EconoFry range of electric fryers is designed to meet the needs of small, medium, and large-scale food producers, delivering consistent, high-quality results with superior efficiency. Featuring advanced electric heating technology, these fryers ensure optimal heat transfer and a superior cooking process.
Key Features:
- Efficient Heat Transfer: The Deighton EconoFry Fryers utilize immersed heating elements, which provide 97-99% direct heat transfer to the oil, ensuring the oil quality is maintained and product quality is optimized.
- Three-Phase Power Supply: The fryers operate on a three-phase electricity supply and are easily controlled via a central digital control panel.
- Continuous Product Submersion: The adjustable bottom conveyor and hold-down conveyor (supplied as standard) ensure continuous submersion of the product in hot oil throughout the entire frying process.
- Customisable Cooking: With adjustable cooking time and temperature settings, operators can easily fine-tune the frying process to achieve the perfect texture, appearance, and level of crispness.
- Safety and Maintenance: The Deighton EconoFry includes oil level detection, an automatic low-level cut-out system, and a removable conveyor unit for easy cleaning and maintenance. The hinged element enclosures also ensure safe operation.
Designed for versatility, the Deighton EconoFry is ideal for frying a wide variety of products, including:
- Snacks & Finger Foods: Spring rolls, onion bhajis, falafel, fish fingers, chicken nuggets, and more.
- Fast Frying or Full Cooking: Whether you need to flash fry or cook items fully, the Deighton EconoFry delivers consistent, high-quality results every time.
Fryer Options and Specifications
The Deighton EconoFry range includes various sizes and configurations to suit different production capacities:
Deighton EconoFry 300 x 3m
- Belt Width x Length: 300mm x 3m
- Width (A): 2800mm
- Length (B): 1200mm
- Height (C): 1300mm
- Power: 32kW
- Electricity Supply: 380/415V
- Tank Capacity: 220L
- Approximate Output: 300kg/hr
Deighton EconoFry 300 x 5m
- Belt Width x Length: 300mm x 5m
- Width (A): 4800mm
- Length (B): 1200mm
- Height (C): 1530mm
- Power: 65kW
- Electricity Supply: 380/415V
- Tank Capacity: 410L
- Approximate Output: 600kg/hr
Deighton EconoFry 400 x 3m
- Belt Width x Length: 400mm x 3m
- Width (A): 2800mm
- Length (B): 1300mm
- Height (C): 1300mm
- Power: 36kW
- Electricity Supply: 380/415V
- Tank Capacity: 270L
- Approximate Output: 400kg/hr
Deighton EconoFry 400 x 5m
- Belt Width x Length: 400mm x 5m
- Width (A): 4800mm
- Length (B): 1300mm
- Height (C): 1530mm
- Power: 72kW
- Electricity Supply: 380/415V
- Tank Capacity: 510L
- Approximate Output: 800kg/hr
Deighton EconoFry 600 x 3m
- Belt Width x Length: 600mm x 3m
- Width (A): 2800mm
- Length (B): 1500mm
- Height (C): 1300mm
- Power: 41kW
- Electricity Supply: 380/415V
- Tank Capacity: 360L
- Approximate Output: 600kg/hr
Deighton EconoFry 600 x 5m
- Belt Width x Length: 600mm x 5m
- Width (A): 4800mm
- Length (B): 1500mm
- Height (C): 1530mm
- Power: 82kW
- Electricity Supply: 380/415V
- Tank Capacity: 680L
- Approximate Output: 1200kg/hr
Customisation Options (Available at Additional Cost)
To further enhance the performance and versatility of your Deighton EconoFry fryer, consider these optional upgrades:
- Teflon Infeed: Adjustable angle to accommodate delicate or battered products.
- Sediment Removal System: A scraper system that removes debris and sediment from the tank bottom, ensuring oil quality.
- Oil Filtration: Continuous oil filtration system that improves product finish and extends oil life.
- Hoists: Manual or electric hoisting system for easy conveyor unit removal.
- Storage Tank: A dedicated tank for overnight oil storage, complete with a pump for easy refilling.
Why Choose Deighton EconoFry?
The Deighton EconoFry Fryers are a reliable, cost-effective solution for food producers of all sizes. With digitally controlled heating, continuous conveyor operation, and robust construction, they ensure your production runs smoothly and efficiently, helping you maintain consistent quality and reduce downtime.
For more information or to request a quote, please contact our sales team at Total Food Machines.
