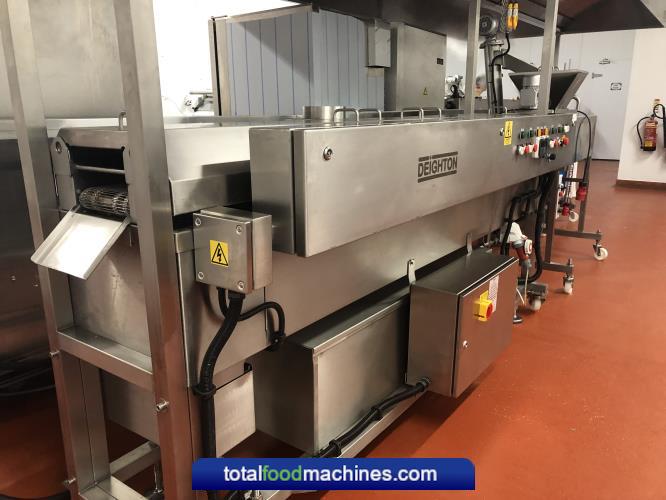

Deighton 200mm Electric Fryer
Deighton Econofry Fryers 200/300/400/600mm Electric
The Deighton Range of Deighton EconoFry Fryers are electrically heated fryers with elements immersed directly into the insulated frying tank for the most efficient heat transfer.
This method imparts 97 – 99% of the heat directly into the oil using low density elements so as not to degrade the quality of the cooking medium
The system runs on a three phase supply and is simply operated from a central control panel.
The product passes between the bottom conveyor and adjustable hold down conveyor (supplied as standard), ensuring continuous submersion in the cooking oil at all times, along the length of the fryer.
Cooking time and temperature are completely adjustable, enabling the producer to finely adjust the appearance and level of readiness of each individual product.
Complete with oil level detection and automatic low level cut-out system, removable conveyor unit and hinged element enclosures
The Deighton EconoFry offers a safe and easy to maintain solution to your frying requirements.
The Deighton EconoFry is the versatile, cost effective frying solution for small, medium and large producers.
The digitally controlled heating and continuous conveyor system ensures a wide variety of products are fried to a consistently high standard. Having the ability to flash fry or fully cook
The Deighton EconoFry is suitable for a vast array of produce from spring rolls, onion bhaji's and falafel to fish fingers, burgers and chicken nuggets.
Fryers can be supplied with the following at extra cost:
Teflon Infeed: Adjustable angle for the frying of battered or delicate products.
Sediment Removal System: A scraper system which removes sediment from the tank bottom.
Oil Filtration: Continuous filtering system to enhance product finish and lengthen oil life. Hoists: Manual or electric system for the removal of the conveyor unit.
Storage Tank: A tank situated underneath the fryer for the storage of oil either overnight or when cleaning. Supplied with a pump for refilling of the fryer
Deighton EconoFry 300 x 3m (belt width x length)
Width (A): 2800mm
Length (B): 1200mm
Height (C): 1300mm
Power: 32Kw
Electricity Supply: 380/415V
Tank Capacity: 220L
Output (approx): 300kg/ hr
Deighton EconoFry 300 x 5m (belt width x length
Width (A): 4800mm
Length (B): 1200mm
Height (C): 1530mm
Power: 65Kw
Electricity Supply: 380/415V
Tank Capacity: 410L
Output (approx): 600kg/ hr
Deighton EconoFry 400 x 3m (belt width x length)
Width (A): 2800mm
Length (B): 1300mm
Height (C): 1300mm
Power: 36Kw
Electricity Supply: 380/415V
Tank Capacity: 270L
Output (approx): 400kg/ hr
Deighton EconoFry 400 x 5m (belt width x length)
Width (A): 4800mm
Length (B): 1300mm
Height (C): 1530mm
Power: 72Kw
Electricity Supply: 380/415V
Tank Capacity: 510L
Output (approx): 800kg/ hr
Deighton EconoFry 600 x 3m (belt width x length)
Width (A): 2800mm
Length (B): 1500mm
Height (C): 1300mm
Power: 41Kw
Electricity Supply: 380/415V
Tank Capacity: 360L
Output (approx): 600kg/ hr
Deighton EconoFry 600 x 5m (belt width x length)
Width (A): 4800mm
Length (B): 1500mm
Height (C): 1530mm
Power: 82Kw
Electricity Supply: 380/415V
Tank Capacity: 680L
Output (approx): 1200kg/ hr
