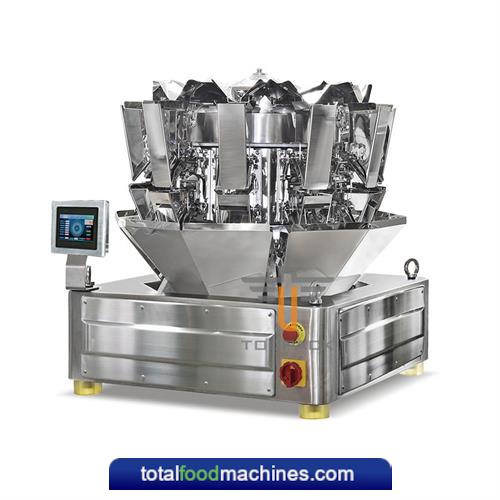

Toupack 10-Head Multihead Weigher
Accurate and reliable 10-head multihead weigher for automated portioning of snacks, confectionery, pasta, seeds, coffee, frozen foods and other free-flowing products.
The Toupack 10-Head Multihead Weigher provides an accurate, efficient and cost-effective introduction to automated combination weighing. Ten individual weighing hoppers work together to calculate the best weight combination before discharging a consistent portion into a bagger, pouch machine, tray, container or filling system.
Available with different hopper capacities, the machine can be configured around the product, target weight, required throughput and packaging format. Its hygienic stainless-steel construction, digital weighing technology and colour touchscreen controls make it suitable for demanding food-production environments.
The 10-head configuration is an excellent choice for manufacturers that require greater speed and accuracy than conventional linear weighing while maintaining a compact and economical system. It can operate as an individual filling machine or be integrated into a complete automated weighing and packaging line.
Suitable products include:
- Crisps, popcorn and savoury snacks
- Nuts, seeds and dried fruit
- Sweets and confectionery
- Coffee beans and chocolate pieces
- Rice, grains, beans and pulses
- Pasta and noodles
- Cereals and dry ingredients
- Frozen vegetables and chips
- Pet food and animal feed
- Small non-food components
Different hopper finishes and feeding arrangements can be supplied to suit free-flowing, delicate, oily or more difficult products. Wi-Fi-enabled remote customer support can also be incorporated into the configured system, allowing the Total Food Machines team to assist with settings, diagnostics and technical support.
Key Features
- Ten-head combination weighing system
- Fast and accurate automatic portioning
- Genuine Toupack weighing technology
- Stainless-steel machine construction
- 1.6 or 2.5-litre hopper options
- Alternative hopper sizes available for selected applications
- Maximum single-hopper weighing range of 10–1,500g
- Production speeds of up to 70 weighments per minute
- Minimum scale interval of 0.1g
- MCU or PLC control options
- 7-inch or 10-inch colour touchscreen
- Programmable product settings
- Tool-free removable contact parts
- Easy cleaning and product changeovers
- Integration with VFFS and premade-pouch machines
- Suitable for filling bags, trays, tubs, jars and containers
- Optional Wi-Fi-enabled remote support
- All European Components
Toupack Models: TY-ZHY102M(P)16-01-11 and TY-ZHY102M(P)25-01-11
Number of Weighing Heads: 10
Hopper Capacity: 1.6 or 2.5 Litres
Single-Hopper Weighing Range: 10–1,500g
Maximum Speed: Up to 70 Weighments Per Minute
Minimum Scale Interval: 0.1g
Control System: MCU or PLC
Touchscreen: 7-Inch or 10-Inch Colour Display
Power Supply: AC 220V/110V, ±10%, 50/60Hz
Rated Power: Approximately 1.5kW
Machine Construction: Stainless Steel
Approximate Packed Dimensions: 1,140mm long × 1,100mm wide × 1,857mm high
Actual performance depends on the product, target weight, hopper configuration, feeding characteristics and connected packaging equipment. Final specifications will be confirmed when the system is selected.
