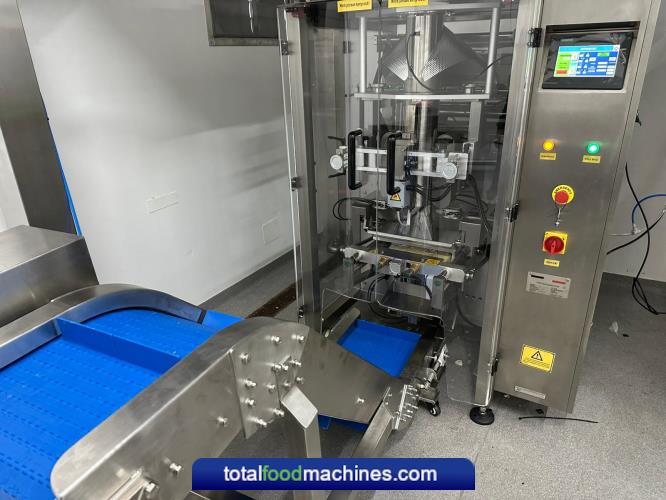

Vertical Form Fill Seal Machine with Multihead Weigher Automation
Overview & Key Features:
Our Vertical Form Fill Seal (VFFS) machine, integrated with a multihead weigher, offers an advanced, space-efficient solution for packaging automation. This system is ideal for operations where speed, accuracy, and cost-effectiveness are paramount, all within a compact footprint.
- Compact Design: Optimized for installations with limited vertical space, such as workshops with a height of 3 meters or less.
- Cost-Effective: An affordable solution that does not compromise on performance, providing excellent return on investment.
- Enhanced Stability and Accuracy: Engineered to deliver precise and stable operations for consistent packaging results.
- Integrated System: Combines both weighing and packaging in one seamless unit, controlled via a user-friendly HMI interface.
- Versatile Applications: Suitable for a wide range of products with custom solutions available to meet specific customer requirements.
This combination of a multihead weigher and VFFS bagging machine offers a highly efficient, low-footprint solution without sacrificing speed or accuracy, making it an ideal choice for businesses with space constraints.
Key Features:
- Ideal for Low-Level Applications: Tailored for operations where the operator is positioned at a lower level, reducing strain and improving ergonomics.
- Eliminates Need for a Multihead Weigher Gantry: Streamlines installation and reduces overall equipment costs.
- Cost-Effective Solution: Delivers high-quality performance at an affordable price point.
- Compact & Small Footprint: Takes up minimal space in your production area, perfect for environments where space is at a premium.
- Low Drop Design: The low-level transfer from the weigher to the bagger ensures gentle handling of products.
- Quick-Release Contact Parts: Enables fast and tool-free maintenance for maximum uptime.
- Dual-Action Control: A single HMI screen controls both the multihead weigher and the bagger, simplifying operation and reducing training time.
- Servo-Driven Belts: Ensures smooth, efficient product handling with precise control over speed and accuracy.
Main Specifications:
- Frame Material: SUS304 stainless steel for durability and corrosion resistance.
- Maximum Film Width: 420mm for versatile packaging options.
- Packaging Speed: Up to 100 bags per minute (empty bags).
- Compatible Packaging Material: Standard heat-sealable composite film for a wide range of products.
Electrical Configuration:
- PLC: MITSUBISHI for reliable control.
- Servo System: Dual Panasonic servo motors for precise, responsive operation.
- Pneumatic Components: AIRTAC for durable and efficient air-powered mechanisms.
- Sensors: Banner photoelectric sensors for accurate product detection.
- Printing: Pneumatic hot stamp printer for clear, high-quality date/lot coding.
Models and Technical Specifications:
| Model |
TY-1A-YZ-M1008-101 |
TY-1A-YZ-M1416-101 |
| Max Weighing (per hopper) |
300g |
300g |
| Weighing Accuracy |
±0.5g |
±0.5g |
| Min Scale Interval |
0.1g |
0.1g |
| Hopper Quantity |
10 |
14 |
| Hopper Volume |
0.8L/1.6L |
0.8L |
| Max Weighing Speed |
60 bpm |
80 bpm |
| Max Film Width |
420mm |
420mm |
| Packaging Material |
Standard heat-sealable composite film |
Standard heat-sealable composite film |
| Packing Speed |
60 bpm (empty bags) |
80 bpm (empty bags) |
| Power Supply |
AC220V ±10% 50Hz/60Hz, 2.5kW |
AC220V ±10% 50Hz/60Hz, 3kW |
This Vertical Form Fill Seal Machine with Multihead Weigher Automation offers exceptional performance, flexibility, and ease of use, all within a compact and cost-effective solution. For further details or to discuss your specific needs, please contact us today on 02890 994 202 or email sales@totalfoodmachines.com
