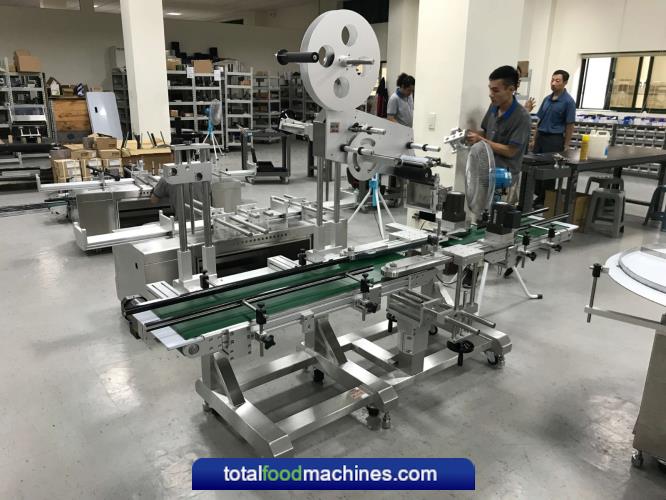

Top and Bottom Labeller
Specially equipped with top and bottom mounted applicators that simultaneously apply a label to both the top and bottom of a wide range packs ranging from food to pharmaceutical products.
Different sizes are accommodated through the adjustable guide rails.
Castors and threaded levelling feet are installed on the base of the chassis for greater mobility.
Machine can be configured to meet nearly any automatic labeling requirement from simple to an integrated top and bottom labelling system with special split conveyor or high grip belt system to expose the underside of the product for labelling.
FEATURE:
The coloured touch screen control panel allows system settings to be easily and quickly changed using an intuitive operator interface.
Settings can be stored for the most common 30 products for quick recall on product changeovers.
A built-in counter can either run freely keeping track of the number of products labelled or can be used in batch mode where the labeller automatically stops when the desired numbers of products have been labelled.
Top and Bottom label heads mounted on solid stainless steel columns with turn wheel adjustment.
Inboard IP55 drive motor
Model PL-221D
Voltage 220/110 VAC 50/60 Hz Single Phase
Power 825 VA
Controls NETCON
Applicator Height 150mm
Label Size H:150 mm x L:300 mm Max.
Conveyor Width 340 mm
Conveyor Speed 5~40 m/min.
Dispensing Speed 40 m/min. Max
Dispense Driver Stepper Motor
Label inner core Diameter 76 mm
Dimensions 2405mm(L) X1075mm (W) X1690mm (H)
Maximum Bottle Diameter 160 mm
Net Weight Approx. 120 KGS
MATERIAL:
Frame and main components are made from SUS 304 stainless steel and anodized aluminium.
CONTROL SYSTEM:
1. Panasonic and PLC control system
2. Label position set makes an easy set up
3. Production quantity counter is convenient for production quantity management
4. Missing label auto stop system
5. Adjustable speed for printing
6. Delta colored HMI system
7. Problem showing and solution guarding
8. Built-in troubleshooting/operation manual
9. 30 memory slots assist you an easier operation
10. Screensaver
For further information contact Total Food Machines on 02890 994 202 or email sales@totalfoodmachines.com
