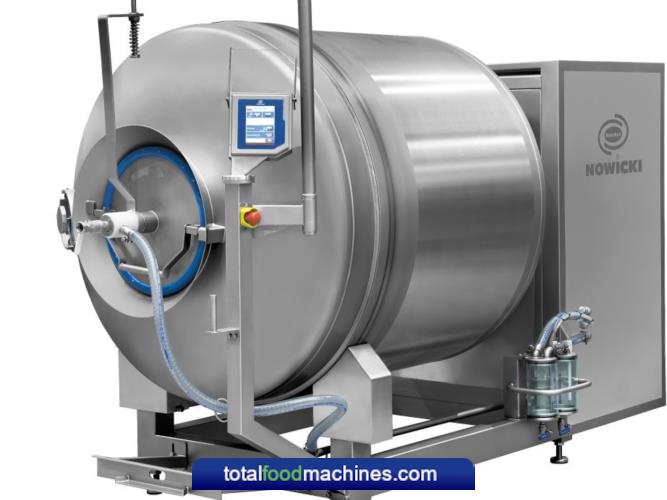

Nowicki MA1500 Litre Vacuum Tumbler
Nowicki MA 1500 PSCH vacuum tumbler with cooling is made from acid-resistant stainless steel with grade 304 (AISI), it is manufactured to the most recent CE directives with the highest of hygiene levels. The Nowick MA 1500 PSCH vacuum tumbler is made specifically for the tenderising and softening of meat in vacuum during the production of ham, shoulder, sirloin, bacon and soft pieces of chicken, with the inside of the drum polished to give the best results on larger meat muscles.
The Nowick MA 1500 PSCH vacuum tumbler with cooling has specially designed paddles inside the drum and a 5.7" touch screen control panel for ultimate in operator control. The combination of these two things enables the vacuum tumbler to achieve the required parameters of the tenderized meat, increases the output of the finished product, achieves optimum binding of proteins, reduces mixing time to a minimum whilst having no effect on the appearance of the fresh meat. These specially designed paddles ensure gentle and consistent tumbling / marinating, with the inside of the drum polished to allow better result when using larger meat muscles.
The Nowicki MA 1500 PSCH vacuum tumbler is fitted with a cooling system (ZCh) with double insulated cooling jacket round the drum, it uses cooling aggregate which is environmentally friendly (cooling agent RG507 or R449a).
The cooling system on vacuum tumblers has many benefits in production:
- shortens the massaging times
- maintains the temperature inside the drum at the same level
- maintains the natural colour of the product
- high production efficiency
- high product quality, regardless of the temperature conditions in the curing plant
- optimal binding of proteins
- improves the micro-biological quality of the product
The Nowicki vacuum tumbler is controlled via a 5.7" touch screen control panel, this allows upto 30 programmes with each program containing upto 12 steps. The control panel allows the operator to control drum speed, vacuum levels, timers, temperature, monitoring parameters, deferred start times and pulsating vacuum settings. The touch screen is protective with a clear cover and has a IP67 rating.
The vacuum tumbler is loaded and cleaned easily and loading can be done by automatic loading systems by Nowicki, these can load individual tumblers or a complete line. Emptying of the drum is done simply using the control panel, the drum is rotated backwards which pushes the product gently out of the opening hole at the front of the vacuum tumbler. The option to add larger touch panels 7.5" or 12" as well as giving a larger display these screens also add the options of having a weighing system added or RFID radio-frequency identification.
SCADA can be fitted as an option to allow for remote monitoring, control and analysis to give the operator and customer more control and functionality.
For further information contact Total Food Machines on 02890 994 202 or email sales@totalfoodmachines.com
