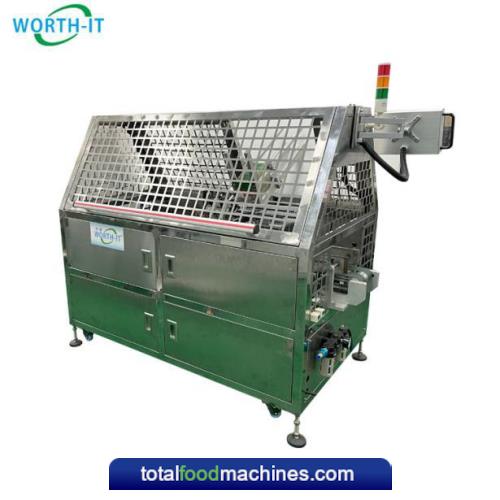

Worth-It S55 Fully-Automatic Pre-Glued Tray Sleever
The Worth-It S55 is a state-of-the-art, fully automatic, continuous motion tray sleever designed to insert a variety of tray or pot formats into pre-glued sleeves at impressive speeds of up to 55-60 packs per minute.
Ideal for high-volume production, this versatile machine is the perfect solution for a wide range of food packaging applications, including ready meals, meats, poultry, desserts, and other prepared foods in film-sealed or lidded pots and trays.
Key Features & Benefits
- High-Speed Efficiency: Capable of running at speeds up to 55/60 packs per minute (depending on product size), the S55 is optimized for high-throughput environments.
- Versatile Sleeving: Designed to handle trays and pots in various shapes—square, round, and oval—the S55 accommodates a wide range of products, including ready meals, sauces, dips, humous, pâté, antipasti, and more.
- Automatic Loading & Sleeving: The pre-glued sleeves are automatically loaded into the hopper, and the machine selects and opens them for seamless insertion of the product, which is then ejected, ready for printing, and outer packaging.
- Quick Changeovers: The S55 is equipped with an adjustable cassette holder that allows for quick and easy changeovers, with size adjustments taking less than 5 minutes—no need for change parts.
- Simple Operation: Featuring a Mitsubishi PLC Control, the machine allows for easy configuration storage, ensuring minimal downtime during production transitions. Additionally, the intuitive design reduces operator training time.
- Durability & Low Maintenance: Built with robust stainless steel construction and laser-cut guards, the S55 offers long-lasting performance with low maintenance requirements, reducing overall operational costs.
- Energy Efficient: With a low-power consumption of just 1.5 KW, the S55 offers an energy-efficient solution for continuous operations.
Versatile Applications
The S55 is ideal for packaging a variety of chilled food products in film-sealed trays, including:
- Ready meals
- Poultry
- Meats
- Fish
- Vegetable products
- Ready-to-cook meals
- Pots and tubs for sauces, dips, humous, pâté, antipasti, and more.
Technical Specifications
- Suitable Sleeve Dimensions:
- Sleeve Length: 50-300mm
- Top Sleeve Width: 75-260mm
- Bottom Sleeve Width: 75-220mm
- Sleeve Height: 20-75mm
- Speed: 55/60 Packs per minute (depending on product)
- Power: 1.5 KW
- Voltage: 220V (50-60 Hz)
- Air Pressure: 0.5-0.8 MPa
- Output Height: 900mm (+/-100mm)
- Machine Dimensions:
- Length: 2050mm
- Width: 1250mm
- Height: 1620mm
Why Choose the Worth-It S55?
- High Production Capacity: Efficiently handles high-volume production with continuous motion.
- Ease of Use: Intuitive controls and quick changeover capability improve overall operational efficiency.
- Low Maintenance: A robust design ensures low downtime and minimal maintenance.
- Precision Control: Mitsubishi PLC ensures precise and reliable performance for consistent results.
- Cost-Effective: With low running costs and reduced maintenance requirements, the S55 is an excellent investment for businesses looking to enhance productivity.
The Worth-It S55 offers unmatched flexibility, reliability, and speed for food manufacturers seeking to improve packaging efficiency. Whether you are producing ready meals, sauces, or other prepared foods, the S55 will help streamline your operations and maximize productivity
For further information contact Total Food Machines on 02890 994 202 or email sales@totalfoodmachines.com
