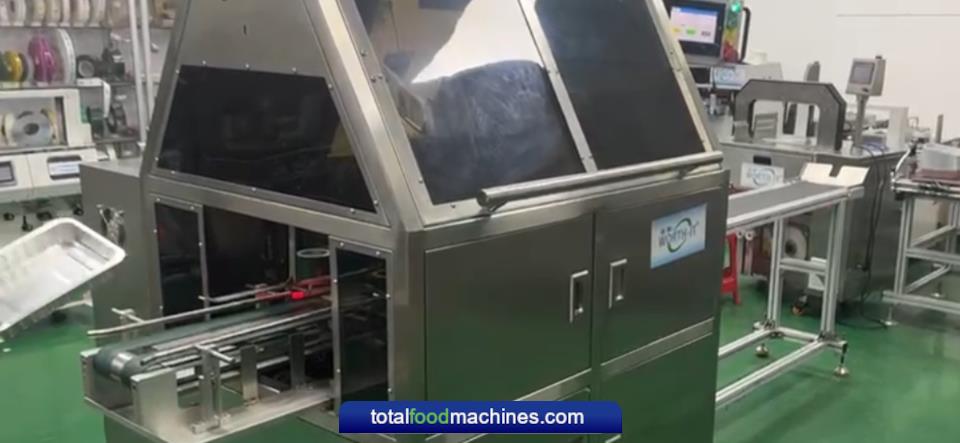

Worth-It S55 Fully-Automatic Pre-Glued Tray Sleever
The Worth-It S55 is an advanced, fully-automatic, continuous motion tray sleever, engineered for high-performance packaging. Capable of achieving speeds of up to 55–60 packs per minute, it is designed to efficiently insert a variety of tray and pot formats into pre-glued sleeves—making it the ideal solution for high-volume food packaging operations.
This versatile sleever excels across a range of food packaging applications, including ready meals, meats, poultry, desserts, and other prepared foods in film-sealed or lidded trays and pots.
Key Features & Benefits
-
High-Speed Efficiency: With a throughput of up to 55–60 packs per minute (depending on product size), the S55 is optimized for fast-paced, high-volume production environments, ensuring maximum output and minimal downtime.
-
Versatile Sleeving: The S55 accommodates a wide variety of tray and pot shapes—including square, round, and oval—making it suitable for packaging a diverse range of food products, from ready meals and sauces to dips, hummus, pâté, antipasti, and more.
-
Automatic Loading & Sleeving: Pre-glued sleeves are automatically loaded into the hopper, and the system selects and opens them seamlessly for the insertion of your product. Finished products are then ejected, ready for printing and further packaging stages.
-
Quick Changeovers: Equipped with an adjustable cassette holder, the S55 allows for easy and fast changeovers—requiring no additional change parts and offering size adjustments in under 5 minutes.
-
User-Friendly Operation: Featuring a Mitsubishi PLC Control system, the S55 enables easy configuration storage and minimizes production downtime during transitions. Its intuitive interface reduces operator training time, enhancing overall productivity.
-
Durability & Low Maintenance: Constructed with robust stainless steel and precision laser-cut guards, the S55 is built to withstand the demands of continuous operation, offering long-term durability and minimal maintenance requirements.
-
Energy Efficient: With a power consumption of just 1.5 KW, the S55 is a highly energy-efficient solution, reducing operating costs while ensuring reliable performance.
Versatile Applications
The S55 is perfect for packaging a wide range of chilled food products, including:
- Ready meals
- Poultry
- Meats
- Fish
- Vegetable products
- Ready-to-cook meals
- Sauces, dips, hummus, pâté, antipasti, and more.
Technical Specifications
-
Suitable Sleeve Dimensions:
- Sleeve Length: 50–300 mm
- Top Sleeve Width: 75–260 mm
- Bottom Sleeve Width: 75–220 mm
- Sleeve Height: 20–75 mm
-
Speed: 55–60 packs per minute (depending on product size)
-
Power: 1.5 KW
-
Voltage: 220V (50–60 Hz)
-
Air Pressure: 0.5–0.8 MPa
-
Output Height: 900 mm (+/- 100 mm)
-
Machine Dimensions:
- Length: 2050 mm
- Width: 1250 mm
- Height: 1620 mm
Why Choose the Worth-It S55?
- High Production Capacity: Ideal for high-volume, continuous production lines.
- Ease of Use: Simple controls and quick changeovers ensure efficiency and minimal downtime.
- Low Maintenance: Built to last with a durable design that reduces the need for ongoing maintenance.
- Precision Control: Mitsubishi PLC technology guarantees consistent, high-quality performance.
- Cost-Effective: Low energy consumption and reduced maintenance costs make the S55 a smart investment for boosting productivity and profitability.
The Worth-It S55 offers unparalleled flexibility, reliability, and speed, making it the perfect choice for food manufacturers looking to streamline their packaging processes. Whether you're producing ready meals, sauces, or other prepared foods, the S55 is engineered to maximize operational efficiency and deliver superior results.
For more information, please contact Total Food Machines at 02890 994 202 or email sales@totalfoodmachines.com
