Multihead Weigher 20 Heads
Dimple Buckets
316 Stainless Steel
Siemens PLC
All components Schneider, Danfoss, Airtac
HBM load cells
Siemens PLC
Siemens HMI
Waterproof IP65

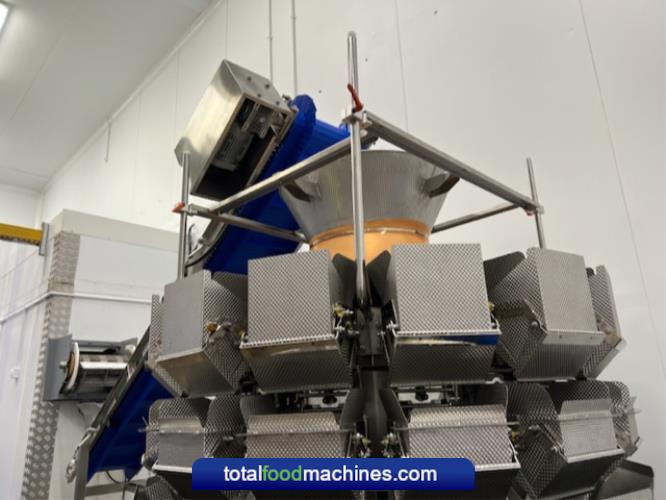

20 Head Multihead Weigher
20 Head Multihead Weighers can be supplied with 0.5L, 0.8L, 1.6L and 2.5L Hopper Volumes.
Multihead Weighers bag products with accurate weights instead of using a linear weigher can be used with or without VFFS or filling into trays or bags
Products are placed into the inlet chute and distributed into the pool hoppers. The accurate weights are calculated by the weigher and the correct weight of product then is released from the buckets within into tray bags or VFFS
10 Inch Colour Touch Screen Control Panel
Stainless Steel Constructed
99 Preset Programs
Cleaning Function - opens hoppers for easy cleaning and machine maintenance
Fast Packing Speed
Easy to use and very user friendly
Suitable for weighing, portioning and packing fresh and frozen products including Chicken Nuggets, Chicken Burgers, Chips, Sausages, Seafood, Nuts Confectionery, Frozen Mince, Fresh and Frozen Diced Meat and Poultry, Salad Products, Pasta, Rice, Vegetarian, Vegetables, Dry Goods, Ethnic Products so many applications why not give us a call to discuss your Multihead Weighing requirement.
Hopper Specification
0.5 Litre
Max Weighing Per Hopper - 250g
Hopper Volume - 0.5 Litres
Dimensions - LxWxH - 1430mm x 1430mm x 1508mm
Weight - 500kg
0.8 Litre
Max Weighing Per Hopper - 250g
Hopper Volume - 0.8 Litres
Dimensions - LxWxH - 1430mm x 1430mm x 1508mm
Weight - 500kg
1.6 Litre
Max Weighing Per Hopper - 1500g
Hopper Volume - 1.6 Litres
Dimensions - LxWxH - 1530mm x 1530mm x 1658mm
Weight - 750kg
2.5 Litre
Max Weighing Per Hopper - 1500g
Hopper Volume - 2.5 Litres
Dimensions - LxWxH - 1530mm x 1530mm x 1658mm
Weight - 750kg
The princilpe of a MultiHead Weigher
At a basic level, a multi-head weigher takes bulk product and weighs it into smaller increments according to the weights programmed into its software.
That bulk product is fed into the scale through the infeed funnel at the top, generally via an incline conveyor or a bucket elevator
A multihead weigher is a fast, accurate and reliable weighing machine, used in packing both food and non-food products
A ‘typical target’ weight per pack might be 100 grams of a product. The product is fed[6] to the top of the multihead weigher where it is dispersed to the pool hoppers. Each pool hopper drops the product into a weigh hopper beneath it as soon as the weigh hopper becomes empty.
The weigher’s computer determines the weight of product in each individual weigh hopper and identifies which combination contains the weight closest to the target weight of 100g.
The multihead weigher opens all the hoppers of this combination and the product falls, via a discharge chute, into a bagmaker or, alternatively, into a distribution system which places the product, for example, into trays.
Dispersion is normally by gravity, vibration or centrifugal force, while feeding can be driven by vibration, gravity, belts, or screw systems.
An extra layer of hoppers can be added to store product which has been weighed in the weigh hoppers but not used in a weighment, thus increasing the number of suitable combinations available to the computer and so increasing speed and accuracy.
Filling bags
The range of bags which can be filled using multihead weighers is immense. At one end of the scale are large catering packs of many kilogrammes. At the other are small bags of crisps which can be handled at high speed and efficiency.
Mix-weighing
Products containing up to eight components can be mixed on a multihead weigher, very accurately at high speeds.
The weigher is divided into sections, each with its own infeed. For example, a breakfast cereal containing hazelnuts and dried fruit plus two relatively cheap ingredients, could be weighed on a multihead with say eight heads devoted to each of the more expensive components and four heads to each of the other two. This would ensure high weighing speed while ensuring that overfilling of the expensive ingredients was negligible.
Filling trays
A well-engineered distribution system enables you to combine the speed and accuracy of multihead weighing with precise, splash-free delivery of product into trays.
Applications
Multihead weighers were used initially for weighing certain vegetables. Their use expanded exponentially in the 1970s and 1980s when they were applied to the rapid weighing of snacks and confectionery into bags. What cherry tomatoes and crisps had in common was that they flowed easily through the machine and into the pack, with no more encouragement than gravity and a moderate level of vibration of the feeders. Since then, the accuracy and relative speed have been extended to many products which would in the early days of the technology have been seen as difficult to handle.
Sticky products
Fresh meat and fish, whether in a sauce or not, poultry and cheese (including grated cheese) can be moved along by using belts or screw feeders rather than vibration.
Granules and powders
While free-flowing, fine-grained powders can be weighed more cheaply by other means (such as cut-gate or linear weighers, or volumetric feeders), granules such as coffee granules and products such as loose tea can be weighed on today’s multiheads.
Fragile products
Weighers with more shallow angles of descent and various cushioned inserts have made it possible to pack delicate and brittle items such as hand-made chocolates and gourmet biscuits. These are often paired with baggers or other packaging systems designed to handle fragile products.[7]
Complex products
Using mix-weighing combined with a distribution system tailored to deliver separate components into a tray, a ready meal can be assembled with just the right quantities of, say, rice, meat and vegetables in the appropriate compartments.
For further information on our range of Multihead Weighers contact Total Food Machines on 02890 994 202 or email sales@totalfoodmachines.com
