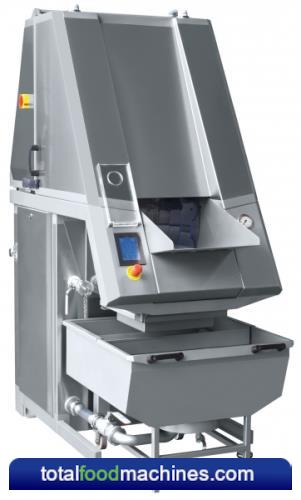

Metalbud Nowicki 21/84 Multi Needle Injector
21 up to 84 Needles
The Multi Needle injector is designed for brine injection of meat, poultry and fish
High and low injections
System of multifunctional injection heads (1,2,3 and 4- needle)
Quick change of the entire injection head with needles
Injection head stroke of 200 mm as a standard (100 and 250 mm is available as an option)
Two speeds of the injection head in a standard version
Efficient power transmission system
Easy to operate control panel
Easy to disassemble and to clean conveyer made of plastic material
Different conveyor speed controls
Highly efficient centrifugal pump
Smooth brine pressure controlled up to 3 bar (4 bar is an option)
Constructed from stainless steel
Functions of brine mixing and brine pumping out from the tank
Closed brine circulation system
Easy to clean multistage brine filtration system
Number of sockets = 21
Maximum number of needles = up to 84
Conveyor width = 326 mm
Maximum output = 500/2000 kg/h
Injection height stroke = 200 mm
*Please click PDF for more information on Metalbud Nowicki Multi Needle Brine Injector*
For further information contact Total Food Machines on 02890 994 202 or email sales@totalfoodmachines.com
