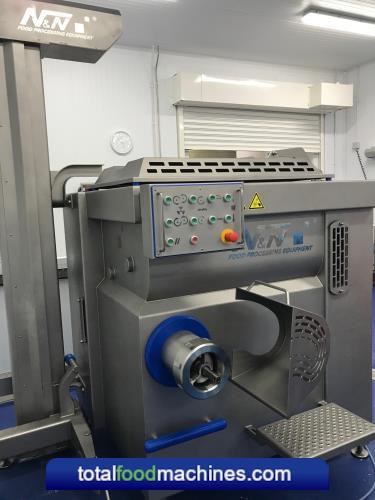

MG series mixer-grinders combine a twin shaft paddle mixer with a grinding system positioned beneath the mixing bowl. Designed for mixing and final grinding of pre-minced products.
Applications
Pre-minced meat fillings for sausages, hamburgers and nuggets, vegetable purees, fruit pulp and other suitable products. The catalogue describes the MG series for pre-minced material; it is not specified as a frozen-block grinder.
Models and technical specifications
MG 450/160: total capacity 450 litres; maximum filling 338 litres; mixer power 4.5 kW; shaft speeds 20/40 rpm; grinding throat diameter 160 mm; net weight 1530 kg.
MG 900/160: total capacity 900 litres; maximum filling 675 litres; mixer power 11 kW; shaft speeds 16/32 rpm; grinding throat diameter 160 mm; net weight 1970 kg.
MG 1500/200: total capacity 1500 litres; maximum filling 1125 litres; mixer power 15 kW; shaft speeds 14/28 rpm; grinding throat diameter 200 mm; net weight 2780 kg.
Grinder motor power is configuration-dependent and is not assigned a fixed figure in this catalogue.
Required compressed air: 6 bar for all three models. Pneumatic lid opening and closing.
Controls and options
Button control panel is standard. PLC/HMI control is optional; the HMI system supports up to 100 programs, each with five programmable steps. An auxiliary trolley allows removal and storage of the grinding screw and cutting tools.
Options include column loading, variable speed, temperature measurement, water dosing, weighing, Easy Clean shaft seals, polished bowl and shafts, a double jacket with maximum pressure of 2 bar, and a dust-proof sealed lid. PLC/HMI is required for the electronic process options.
Maximum filling figures are volumes in litres. Output depends on product, cutting set and machine configuration; this catalogue does not specify a fixed hourly throughput.
