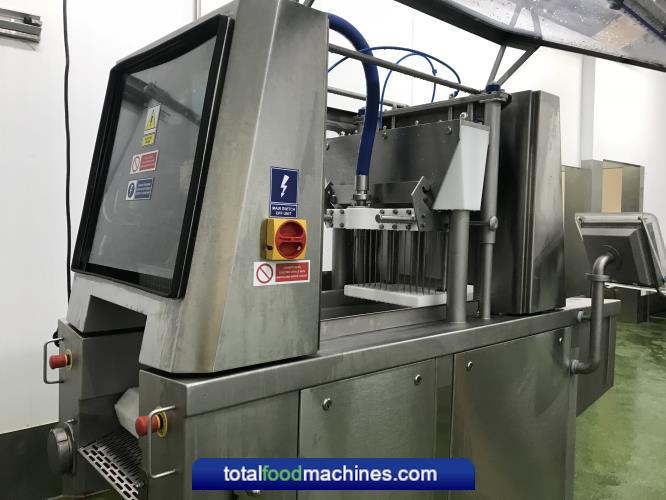

Metalbud Nowicki MH-75 SAS Multi-Needle Injector
1 Head
75 Needle
Brine Mixing System
PLC Control
Metalbud Nowicki supply a range of injectors with a SAS SYSTEM
Produces greater control of injection process.
SAS SYSTEM Meat Injectors are intended to implement the most complex processes of injection.The Metalbud Nowicki MH-75 SAS Multi Needle Injector is suitable for meat muscles and elements of red meat with bone or boneless, poultry and parts of white meat with bone or boneless.
SAS SYSTEM advantages
High rate of repeatability throughout the operational process.
Low injection rates up to 10%, as well as high injection rates up to 120%, small deviation of injection level from 0.5 to 2% high production rates in kg/h
Maximum speed of injection is up to 60 cycles per minute.
Injection of raw meats with different thickness without extruding brine.
Allows pre-programming of injection moment, i.e. determining the layer of raw meats which will be injected and the drive of transporter is synchronised with the drive of injection head which enables many combinations of injection patterns.
Multi-step filtration system
Easy disassembly of injection head.
Quick assembly of needles: 2 mm,2.5 mm, 3 mm, or 3.5 mm
Conveyor width = 370 mm
Maximum output = 3000 kg/h
Volume of injection = 5/100 %
*Please click PDF for more information on Metalbud Nowicki Mulit-Needle Injector*
For further information contact Total Food Machines on 02890 994 202 or email sales@totalfoodmachines.com
