Mash Depositing Machine

Total Food Machines Rating

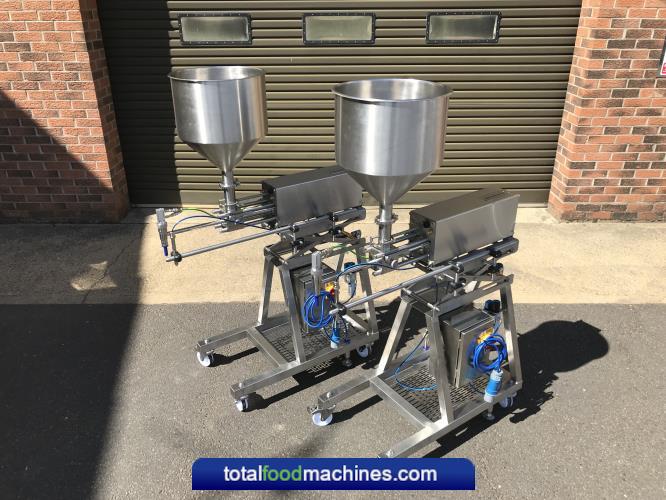

W.E. Mash Depositing Machine

W.E. Mash depositing machine have been developed in order to deliver precise deposits of Mash Potato onto cottage pies producing a ploughed field effect or other pattern

The W.E. depositor range can accurately deposit hot or cold mash potato

These machines are fully pneumatic in operation and there is a requirement for electrics on the force feed agitator.

You can also use the WE Depositor for the following

Applications include a variety of products such as; oil/vinegar based dressings, soups, sauces, ready meals, coleslaw, wet salads, yoghurt, hummus, cake batter, frosting, peanut butter, jam and much more.

Standard Features:

Stainless steel and food grade material construction.

Quick dismantle and reassembling times for cleaning, thus increasing the machines efficiency.

The speed control is fully adjustable in order to suit your requirements.

Volume adjustment is also simple.

There is a readily available port for the external foot pedal / fill signal.

It has an air filter regulator.

Foot pedal or air signal control.

Optional Features:

RJT or Tri - Clover fittings to hold the connection together.

General purpose cut off nozzles from 20mm to 50mm diameter.

Rise & fall nozzles from 20mm to 36mm diameter.

Liquid cut off nozzles.

Rotary spreading nozzles.

Positive ported units for pressure feed systems.

High temperature seals.

Stainless steel hoppers from 5 litres to 250 litres.

Range of stainless steel stands including conventional scissor stands, single column stands, low level trolley stands, combination stands and vertical stands to accommodate your spatial capacity.

Hopper level control systems.

24v DC tip signal control.

Electrical sensing & automation pack to reduce the need for the operator to intervene.

There are a variety of machines in order to cater to your needs. Please see below for the machine ranges:

Micro Fill:

Displacement up to 120ml per stroke

The hopper capacity is 5 litres

It caters for free flowing products including fine particulates

The machine accommodates cold fill only

Rise & Fall type nozzle as standard

Ideal for the injection of cakes and pastries with jam, sauce or cream

Table top stand included

Slim line design

Eco500:

Entry level filler for ease of use and no tool stripdown

It has low air consumption

It has a displacement of up to 500ml per stroke

Hopper capacity of 30 litres (standard)

High or low frame mounting possible

Cut off nozzles from our extensive range to ensure clean, repeatable presentation

For all products with particulates of up to 20mm

it can work with product fill temperatures from 0 degrees up to 40 degree Celsius

Ideal for short production runs

Mini-Fill:

This model has a filler displacement of up to 410ml

The mini-fill can achieve up to 100 fills per minutes depending on the product

Hopper capacity is 40 litres as standard

A range of stands are available - Low/Mid/High

Extensive range of cut off nozzles to ensure clean, repeatable presentation

For a variety of products including those with particulates of up to 25 mm

It can cater for both hot and cold filling

Typical applications include ready meals, sandwich fillers, dessert production and many more

Optional equipment includes various hopper sizes and styles. Automated sensing packages. Retro fit option to customers existing machinery. Positive porting to suite pressure fed systems.

Midi-Fill:

Filler displacement of up to 1.25 litres

The hopper capacity is 60 litres as standard

Range of different stand levels are available - Low/Mid/High

Extensive range of cut off nozzles to ensure clean, repeatable presentation

Accommodate a variety of products including those with particulates of up to 30 mm

Hot and cold filling

Typical applications include soups, coleslaw's, sauces, pie mix and many more

Automated sensing systems are available

Positive porting to suit pressure fed systems

Assisted hopper feed system for non flow able products

Magnum-Fill:

Filler displacement up to 3 litres

Hopper capacity 95 litres as standard

Low/Mid/High level stands available

Extensive range of cut off nozzles to ensure clean, repeatable presentation

For a variety of products including those with particulates up to 35mm

Hot and cold filling

Typical applications include bulk packaging of food products and many more

Automated sensing system available

Mega-Fill:

Filler displacement up to 5 litres

Hopper capacity 95 litres as standard

Low/Mid/High level stands available

Extensive range of cut off nozzles to ensure clean, repeatable presentation

For a variety of products including those with particulates up to 35 mm

Hot and cold filling

For further information please contact Total Food Machines on 02890 994 202 or email sales@totalfoodmachines.com
